NON ATTENUATION

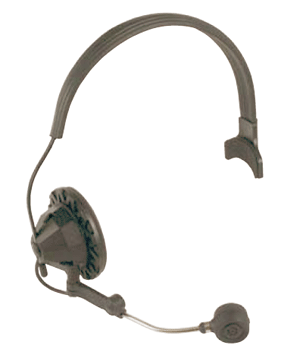

MT32H01

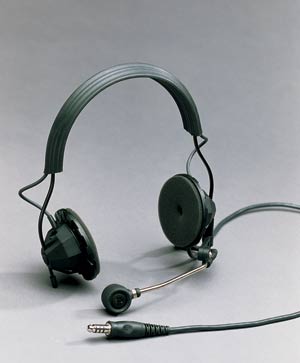

MT32H02 |
- Very high comfort due to a broad headband of sprung stainless steel, which ensures even pressure
- Replaceable padding
- Built-in air ducts
- Continuous height adjustment
- Load-relieving cord clip
- Standard version with J11 connector
- Available in single sided or dual earphones
Description |
Product code |
Attachment |
Single sided, J11 |
MT32H01 |
Head band |
Dual earphone , J11 |
MT32H02 |
Head band |
|
MEDIUM ATTENUATION

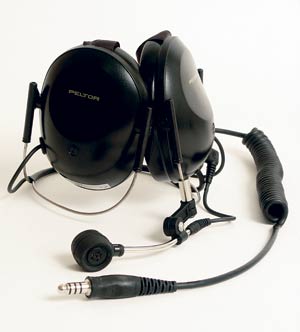

MT7H61B
MT53H7A440B
Description |
Product code |
Attachment |
Weight (g) |
LPD 433 MHz |
MT53H7A430B |
Head Band |
436 |
LPD 433 MHz |
MT53H7P3E430B |
Helmet att. |
456 |
LPD 433 MHz |
MT53H7B430B |
Neck band . |
421 |
PMR 446 MHz |
MT53H7A440B |
Head band |
436 |
PMR 446 MHz |
MT53H7P3E440B |
Helmet att. |
456 |
PMR 446 MHz |
MT53H7B440B |
Neck band |
421 |
Guide Receiver 446 MHz |
MT53H7B430B |
Helmet att. |
438 |
|
|
|
|
MT52H79F-xx
Frequency (Hz) |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
Mean Attenuation (db) |
15.4 |
26.6 |
29.3 |
40 |
34.3 |
33 |
36.5 |
Standard Deviation (db) |
3.1 |
2.2 |
1.6 |
1.5 |
2.4 |
2.3 |
1.9 |
Assumed Protection (db) |
12.3 |
24.4 |
27.7 |
38.5 |
31.9 |
30.7 |
34.6 |
|
- Low-profile shells for easy, comfortable use together with other PPE devices
- Low weight
- Dynamic speech microphone with effective noise compensation for clear and reliable communication
- Quick Positioning microphone for easy handling
- Soft, wide, foam and fluid-filled ear cushions and individually sprung headband wires of stainless sprung steel provide an even and consistent distribution of pressure around the ears for the best possible comfort
- Beam-mounted earphones that provide the least possible resonance and distortion for excellent sound reproduction even in high-noise environments
- Available in standard version with J11 (Nexus TP-120) connector. Also available in a direct-connected version on request.
- Choose between Head- or neck band

|
HIGH ATTENUATION STANDARD

MT7H79A
Description |
Product code |
Attachment |
Weight (g) |
J11, dynamic mic, 230ohm |
MT7H79A |
Head Band |
315 |
J11, dynamic mic, 230ohm |
MT7H79B |
Neck band |
300 |
J11, dynamic mic, 230ohm |
MT7H79PE3 |
Helmet att. |
345 |
MT7H79A, MT7H79B
Frequency (Hz) |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
Mean Attenuation (db) |
17.7 |
27.1 |
33.8 |
38.1 |
36.2 |
33.6 |
37.1 |
Standard Deviation (db) |
2.9 |
2.1 |
2.4 |
2.6 |
2.3 |
2.5 |
2.2 |
Assumed Protection (db) |
14.8 |
25 |
31.4 |
35.5 |
33.9 |
31.1 |
34.9 |
MT7H79P3E
Frequency (Hz) |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
Mean Attenuation (db) |
17.2 |
26.4 |
33.9 |
37.2 |
35.4 |
33.2 |
37 |
Standard Deviation (db) |
3.1 |
2.5 |
2.7 |
2.3 |
2.6 |
2.4 |
2 |
Assumed Protection (db) |
14.1 |
23.9 |
31.2 |
34.9 |
32.8 |
30.8 |
35 |
|
- High-attenuating shells with optimised acoustic design
and excellent space for the ears for the best possible
sound quality and comfort
- Microphone with effective noise compensa-tion for clear
and reliable communication
- Quick Positioning integrated microphone boom for
easy handling
- Soft, wide, foam and fluid-filled ear cushions and
individually sprung headband wires of stainless sprung
steel provide an even and consistent distribution of
pressure around the ears for the best possible comfort
- Standard J11 connection (Nexus TP-120)
Beam-mounted earphones that provide the least
possible resonance and distortion for excellent sound
reproduction even in very high-noise environments
- Numerous configurations. Overhead, neckband and
helmet-attached versions to meet most users'
requirements.

|
HIGH ATTENUATION DIRECT LEAD

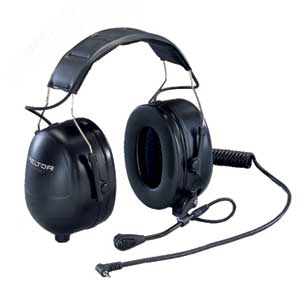

MT53H79A-21
Description |
Product code |
Attachment |
Weight (g) |
Direct lead Motorola GP300 |
MT53H79A-21 |
Head Band |
310 |
Direct lead ICOM/Alinco |
MT53H79A-31 |
|
340 |
Direct lead Motorola GP340 |
MT53H79P3E-32 |
Helmet att. |
340 |
Direct lead Nokia/Ericson 2.5mm |
MT53H79A-28 |
Head Band |
310 |
Direct lead ICOM angled plug |
MT53H79P3E-35 |
Helmet att. |
340 |
Direct lead Kenwood |
MT53H79A-36 |
Head Band |
310 |
Flex headset |
MT53H79A-77 |
Head Band |
310 |
MT53H79A
Frequency (Hz) |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
Mean Attenuation (db) |
17.7 |
27.1 |
33.8 |
38.1 |
36.2 |
33.6 |
37.1 |
Standard Deviation (db) |
2.9 |
2.1 |
2.4 |
2.6 |
2.3 |
2.5 |
2.2 |
Assumed Protection (db) |
14.8 |
25 |
31.4 |
35.5 |
33.9 |
31.1 |
34.9 |
MT53H79P3E
Frequency (Hz) |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
Mean Attenuation (db) |
17.2 |
26.4 |
33.9 |
37.2 |
35.4 |
33.2 |
37 |
Standard Deviation (db) |
3.1 |
2.5 |
2.7 |
2.3 |
2.6 |
2.4 |
2 |
Assumed Protection (db) |
14.1 |
23.9 |
31.2 |
34.9 |
32.8 |
30.8 |
35 |
|
- High-attenuating shells with optimised acoustic design
and excellent space for the ears for the best possible
sound quality and comfort
- Microphone with effective noise compensation for clear
and reliable communication
- Quick Positioning integrated microphone boom for
easy handling
- Soft, wide, foam and fluid-filled ear cushions and
individually sprung headband wires of stainless sprung
steel provide an even and consistent distribution of
pressure around the ears for the best possible comfort
- PTT button on the shell
- Beam-mounted earphones that provide the least
possible resonance and distortion for excellent sound
reproduction even in very high-noise environments.
- Direct lead to several different comunication radios,
DECT- and mobile phones
- Also available as Flex headset. A standard chassis jack
for connecting Flex cords (FL6U-**) for various
types of communication equipment - com. radio,
mobile or DECT
|
HIGH ATTENUATION WS, BLUETOOTH

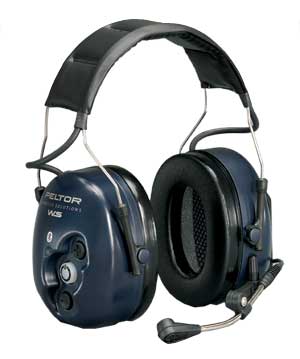

MT53H7AWS2
Description |
Product code |
Attachment |
Weight (g) |
WS Headset - Bluetooth |
MT53H7AWS2 |
Head Band |
370 |
J11, dynamic mic, 230ohm |
MT7H79B |
Neck band |
300 |
J11, dynamic mic, 230ohm |
MT7H79PE3 |
Helmet att. |
345 |
MT7H79A, MT7H79B
Frequency (Hz) |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
Mean Attenuation (db) |
17.7 |
27.1 |
33.8 |
38.1 |
36.2 |
33.6 |
37.1 |
Standard Deviation (db) |
2.9 |
2.1 |
2.4 |
2.6 |
2.3 |
2.5 |
2.2 |
Assumed Protection (db) |
14.8 |
25 |
31.4 |
35.5 |
33.9 |
31.1 |
34.9 |
|
- Wireless connection to phones using BluetoothT
technology
- The headset and telephone can be up to 10 metres
apart and out of visible range without losing contact
- Volume and answer button on the shell
- High-attenuating shells with optimised acoustic design
and excellent space for the ears for the best possible
sound quality and comfort
- Microphone with effective noise ompensation for clear
and reliable communication
- Quick Positioning integrated microphone boom for
easy handling
- Soft, wide, foam and fluid-filled ear cushions and
individually sprung headband wires of stainless sprung
steel provide an even and consistent distribution of
pressure around the ears for the best possible comfor
- Beam-mounted earphones that provide the least
possible resonance and distortion for excellent sound
reproduction even in very high-noise environments
|
|
|
|
|
